Group
×

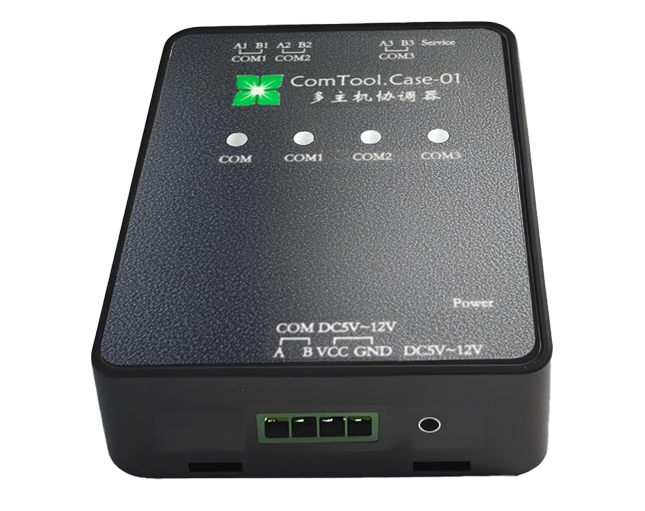

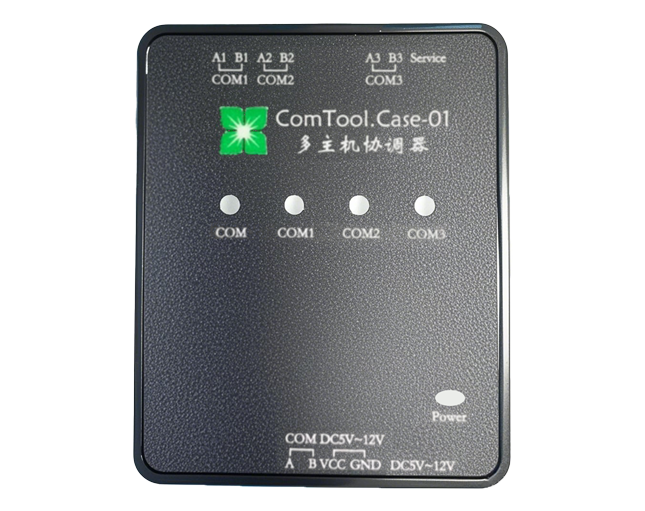

COM Tool

This product is a data transmission tool used in multi-master mode. It connects to devices via a Phoenix terminal interface (RS-485 level), resolving the problem of data reception confusion caused by multiple master devices communicating with a single slave device.
COM Tool
  • ·Easy Installation·
  • ·Stable and Reliable·
  • ·Flexible Expansion·

Product Features

  • Easy Installation
    Easy Installation
    Flexible and quick setup.
  • Stable and Reliable
    Stable and Reliable
    Wide voltage design, undervoltage protection, and hardware/software watchdog mechanisms.
  • Flexible Expansion
    Flexible Expansion
    Enhances system flexibility for easy expansion without point-to-point connections.
  • Efficient and Reliable
    Efficient and Reliable
    Multiple hosts share load to prevent single-host overload.
  • Real-Time Monitoring
    Real-Time Monitoring
    Remote monitoring via online platform.
  • Strong Data Processing
    Strong Data Processing
    Multi-host collaboration improves data processing capacity, suitable for high-data-volume scenarios.

Product Parameters

Product ModelComTool.Case
Basic parametersDimension72.00*58.00*22.20mm
Weight≈60g
Protection levelIP21
Installation methodWall-mounted or Adhesive-mounted
Rated voltageDC5V~DC12V
Maximum current2A
External InterfacePhoenix Terminal
Indicator lights5
Operating temperature-40℃~+85℃
Storage temperature-40℃~+90℃
Communication parametersLocal communication interfaceRS-485
Baud rate9600bps (default)
Check bitNONE
Data bits8
Stop bit1
Bluetooth distance15 meters
BluetoothBLE 5.0
Other parametersWatchdogSoftware watchdog + Hardware watchdog
Configuration methodSupports Bluetooth, serial port and other channels
Work modePass-through mode
Number of connected devices3 master units and 1 slave unit
Cloud CompabilityValueClouds or customized platforms

File Downloads

Applicable Scenarios

  • Street Light
  • UPS
  • BMS
  • Portable Energy Storage
  • Balcony Energy Storage
