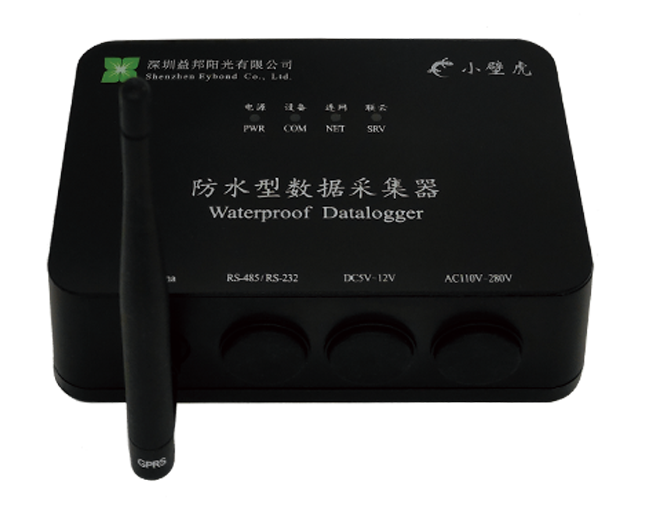

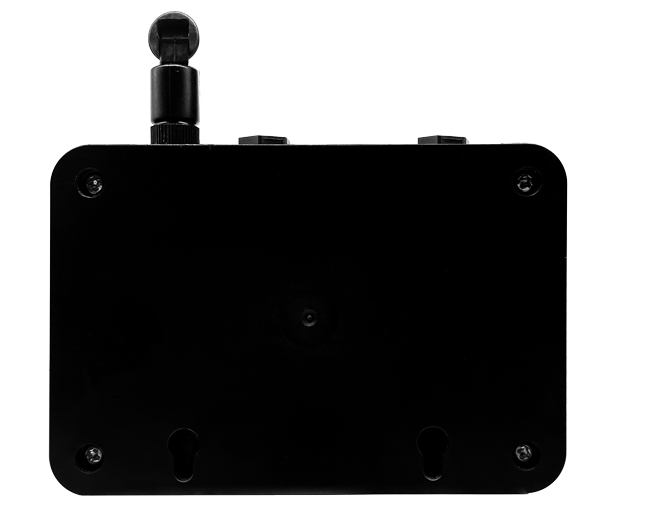

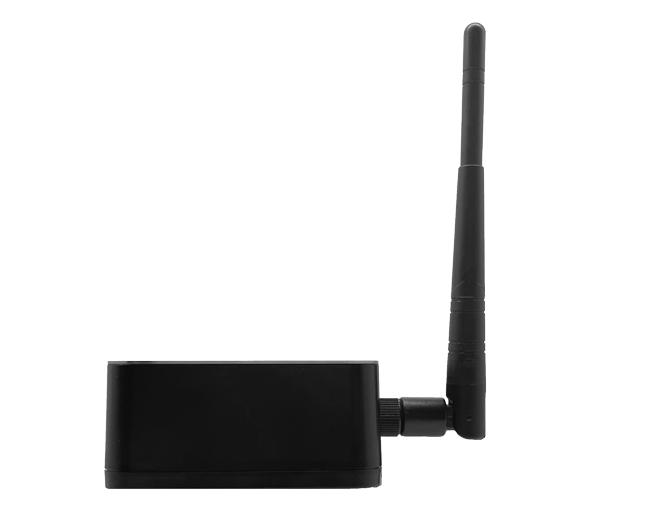

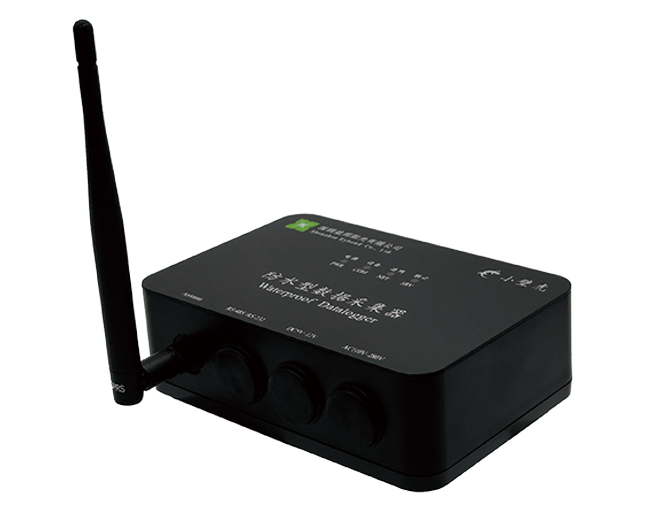

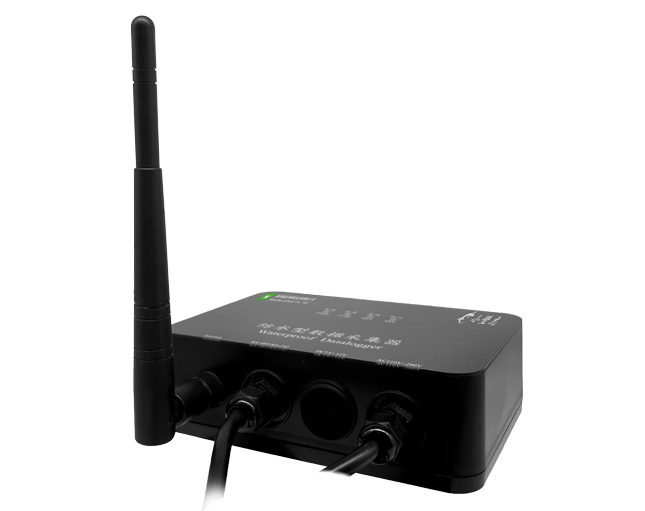

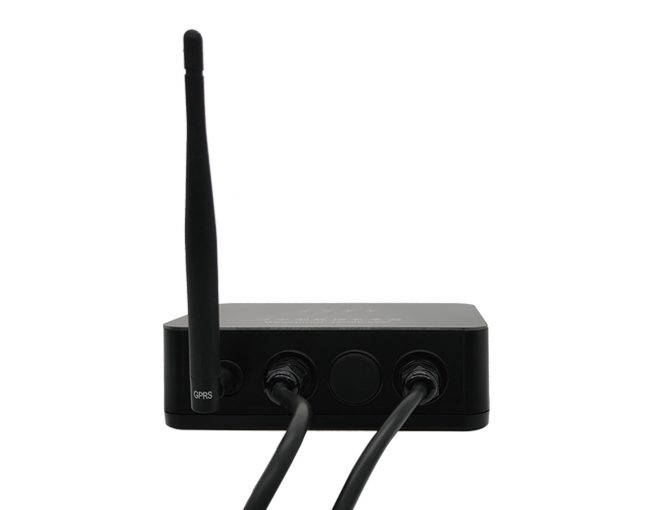

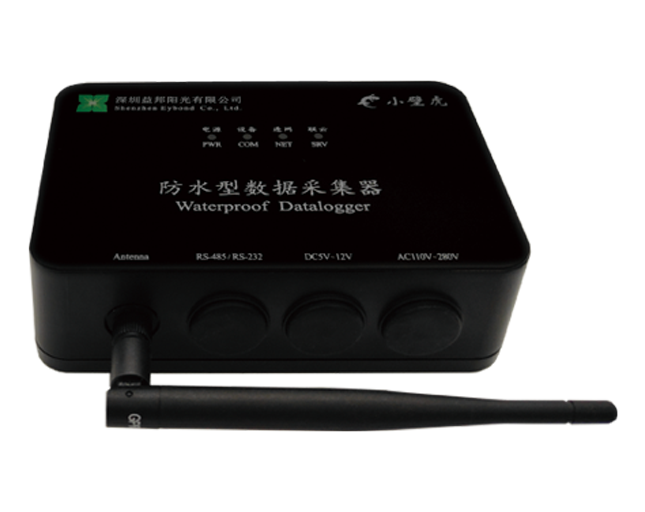

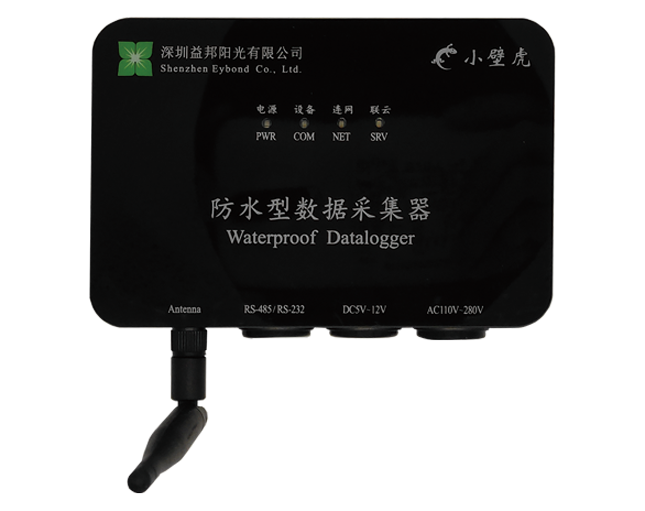

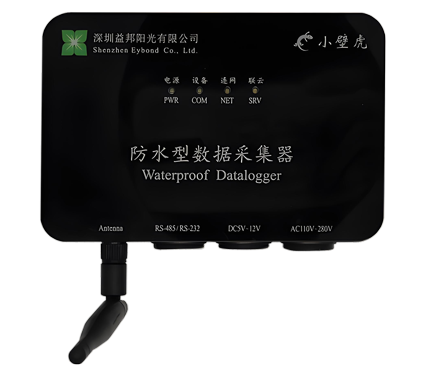

DTU. Box Series

An industrial data logger ideal for outdoor use, it collects data via RS-485/232 interface and 4G network, enabling intelligent power outage monitoring and master-slave cluster interconnection, and features stable AC/DC dual-source power supply and dust and water protection.
DTU. Box Series
  • · Outdoor Preference ·
  • · Waterproof IP 65 ·
  • · Power Outage Monitoring ·

Product Features

  • Smart Detection
    Smart Detection
    Delayed Outage Notifications
  • Offline Data Cache
& Retransmission
    Offline Data Cache & Retransmission
    Store Data During Network Interruptions and Resend upon Recovery
  • One Master &
Multiple Followers
    One Master & Multiple Followers
    Support Simultaneous Multi-Devices Connectivity
  • Dual Power Supply
    Dual Power Supply
    AC/DC Compatible
  • Various Interfaces
    Various Interfaces
    USB/RJ-45/DB9/Aviation Connector

Product Parameters

Product ModelsWFBLE.DTU.Box4G.DTU.Box
Basic Parameters
Dimension125*80*38mm125*80*38mm
Protection RatingIP65IP65
Rated VoltageDC5V~DC12V/AC110V~280VDC5V~DC12V/AC110V~280V
Max Current800mA(5V)2A(5V)
Operating Temperature-40℃~+85℃-40℃~+85℃
Serial Port LevelRS-232/RS-485RS-232/RS-485
Baud Rate1200bps/2400bps/4800bps/9600bps/19200bps/38400bps/57600bps/115200bps
Fault ProtectionSoftware Watchdog + Hardware Watchdog
Communication Range100m (Open Area)Operator Network
Cloud CompabilityEybond Cloud/Private CloudEybond Cloud/Private Cloud

File Downloads

    No Data

Applicable Scenarios

  • Large-Scale PV Poverty Alleviation Power Station
  • Commercial & Industrial PV Power Station
