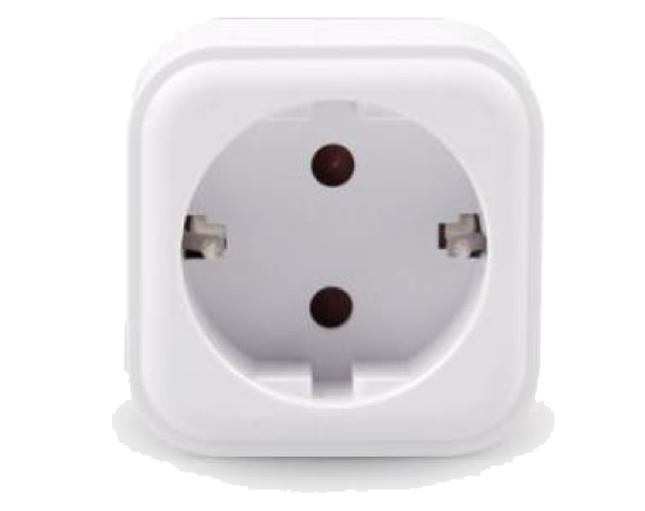

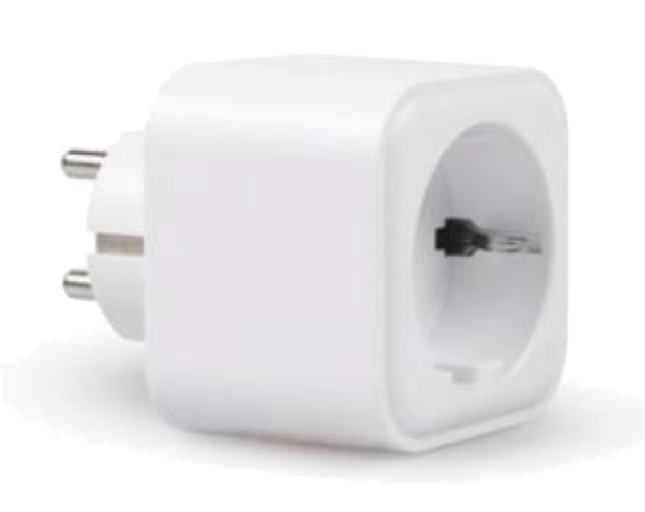

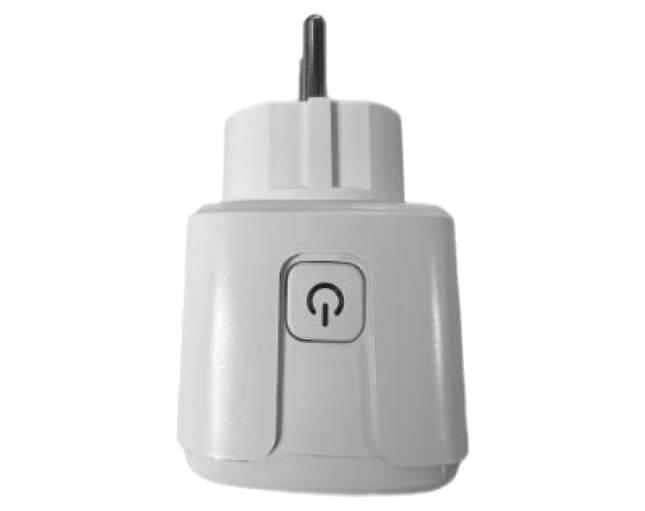

Smart Socket

BLEMesh smart socket enables remote control, power monitoring, timed switching, and overload protection. Gateway connectivity supports energy optimization and safe power management.


Smart Socket
  • ·Remote Control·
  • ·Power Detective·
  • ·Smart Timing·

Product Features

  • Data transmission
    Data transmission
    Support power and energy data transmission, with energy consumption traceableReplacement)
  • Bluetooth networking
    Bluetooth networking
    Standard BLEMesh design enhances connection efficiency
  • Remote control and management
    Remote control and management
    Remote control anytime and anywhere to safeguard electrical safety
  • Overload protection
    Overload protection
    Supports overload protection and automatic shutdown, ensuring safety and reliability
  • Topological flexibility
    Topological flexibility
    Adopts a many-to-many communication topology structure, ensuring stable transmission
  • Easy to expand
    Easy to expand
    Has strong scalability, is easy to deploy and convenient to use

Product Parameters

Product ModelSmart Socket
size50*50*64mm (excluding pins)
Protection levelIP20
power supplyAC 110~250V/50/60Hz 16A
Power consumption<3680W
Power consumption of this machinePeak power consumption <2W
Measurement parametersForward and reverse active power, forward and reverse active energy
Measurement accuracy3%
storage2MB
Protection against electric shockElectric shock protection door
Operating temperature-20℃ ~ +50℃
Operating humidity10%~70%RH (25℃)
Altitude0-4000m
Storage temperature-40℃ ~ +90℃
Storage humidity≤40%RH(25℃)
Bluetooth standardBLE 5.0
Internal communication interface typeTTL
Public network access methodBluetooth
Bluetooth transmission distance≤20m
Operating frequency band2.4GHz
baud rate2400bps~115200bps (default 9600bps)
Antenna typeOnboard
Data rate1Mbps
Work modePass-through mode
Configuration methodCT instructions
Work modePass-through mode
Supports cloud platformsValue Cloud, Customer-Customized Platform
Number of connected devices1 unit
Detailed Specifications

File Downloads

Applicable Scenarios

  • Street Light
  • UPS
  • BMS
  • Portable Energy Storage
  • Balcony Energy Storage
