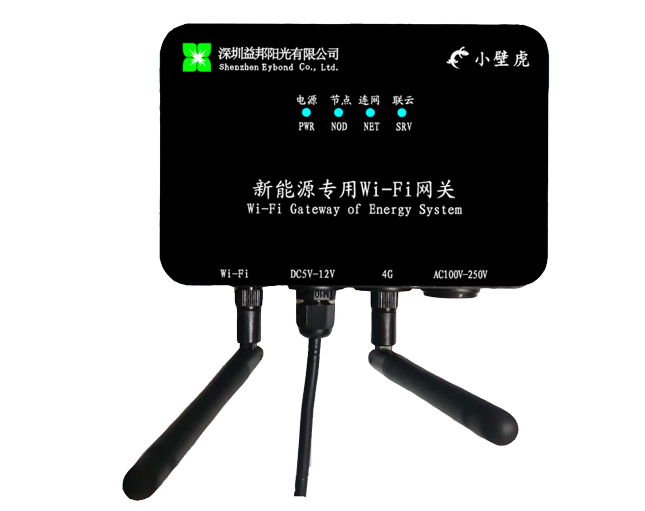

4G industrial gateway with Wi-Fi hotspot for automatic node connection, delivering long-range, low-cost remote monitoring to the cloud.
- ·Remote Parameter Control·
- ·Simple Networking·
- ·Safe Data·
Product Features
-
Dual protection inputPower serial port dual protection reduces risk. -
Easy installationIndependently designed, it can be placed flat or hung on the wall, offering flexibility and freedom
-
Smart networkingThe APP features one-click network configuration and automatic networking, making it simple and easy to operate
-
Flexible managementNodes can be added, deleted or modified, allowing for free control over the network structure
-
Diverse networkingSupports MESH networking for local area networks and wide area networks, and is adaptable to multiple scenarios
-
Convenient renewalRecharge on both the platform and the APP, with quick and simple operation
Product Parameters
| Product Model | Wi-Fi Gateway | Wi-Fi Mesh Gateway |
| Dimensions (Length/Width/Height) | 125*85*38mm | 125*85*38mm |
| weight | 220g | 220g |
| Protection level | IP65 | IP65 |
| Rated voltage | DC5V~12V±5% | DC5V~12V±5% |
| AC100V~250V±10% | AC100V~250V±10% | |
| Maximum current | 2A (DC 5V) | 2A (DC 5V) |
| Operating temperature | -40℃ ~ +85℃ | -40℃ to +85℃ |
| Storage temperature | -40℃ ~ +90℃ | -40℃ to +90℃ |
| Work indicator light | (Power, Equipment, Base Station, Network) Indicator Lights | (Power, Node, Base Station, Network) Indicator Lights |
| Data input method | Wi-Fi | Wi-Fi |
| Data output method | 4G | 4G/Wi-Fi |
| 4G operating frequency | LTE FDD: B1/B3/B5/B8 | LTE FDD: B1/B3/B5/B8 |
| LTE TDD: B34/B38/B39/B40/B41 | LTE TDD: B34/B38/B39/B40/B41 | |
| Maximum transmission rate | 10Mbps | 10Mbps |
| Data SIM card | 4G Nano Card | 4G Nano Card |
| Operating frequency | 2.4G | 2.4G |
| Operating frequency band | 802.11 B/G/N | 802.11 B/G/N |
| Number of access nodes | 1-10 units | 1-10 units |
| Local management | 2.4G | From any given mesh node, you can manage and configure all nodes in the mesh network. |
| Network type | ---- | Supports LAN MESH networking and WAN MESH networking |
| Network Topology | ---- | Specifying node topology and automatic node topology |
| Fault recovery | ---- | Automatically search for and restore network connectivity. |
| Node Management | ---- | Add node, delete node, modify node |
| Data security | ---- | The network internally supports AES encryption. |
| Maximum number of floors | ---- | 4 floors |
| Maximum capacity | ---- | 156 |
| Networking time | ---- | <60s |
| Network repair time | ---- | <60s |
| Maximum number of bytes per packet | ---- | 1024 bytes |
| Bluetooth operating frequency | 2.4G | 2.4G |
| Bluetooth distance | 5m | 5 meters |
| Bluetooth connection count | 1 | 1 |
| Upgrade features | Product upgrades, node upgrades, equipment upgrades | Gateway upgrade, node upgrade, device upgrade |
| Network topology | Automatic networking | APP networking |
| Gateway Management | Bluetooth connection management | Bluetooth connection management |
File Downloads
Applicable Scenarios
-
Street Light
-
UPS
-
BMS
-
Portable Energy Storage
-
Balcony Energy Storage
