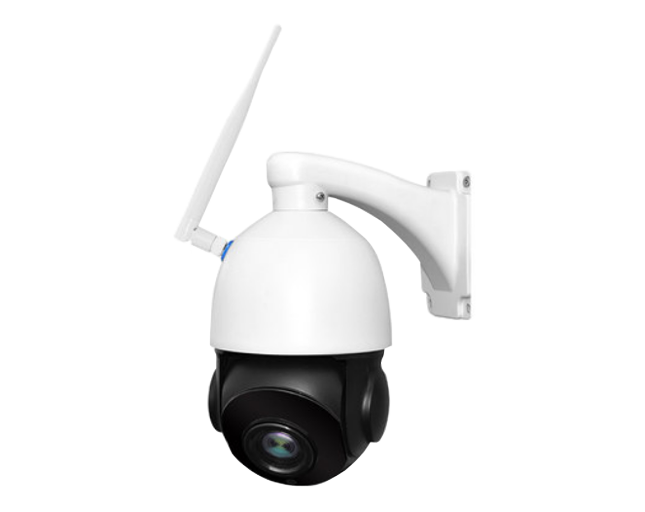

This product provides high-definition remote monitoring with Ethernet/4G support, allowing users to monitor the site situation in real time via a mobile app/webpage.
- ·Ultra HD Wide View·
- ·24/7 Clear Imaging·
- ·4G Remote Access·
Product Features
-
Ultra HD Wide ViewHigh resolution and wide angle for full coverage. -
24/7 Clear ImagingSharp night vision and backlight compensation.
-
4G Remote AccessWireless monitoring via app/web with 4G SIM.
-
Robust ProtectionIP65 waterproof and lightning-resistant.
Product Parameters
| Categories | Parameter entries | IPC Ball-04 |
| Camera parameters | Dimension | 162*137*234.3mm |
| Weight | 700g | |
| Protection level | IP66 | |
| Rated power | 7W | |
| Rated voltage | DC12V | |
| Input current | 0.75A | |
| Operating temperature | -30℃～50℃ | |
| Storage temperature | -30℃～50℃ | |

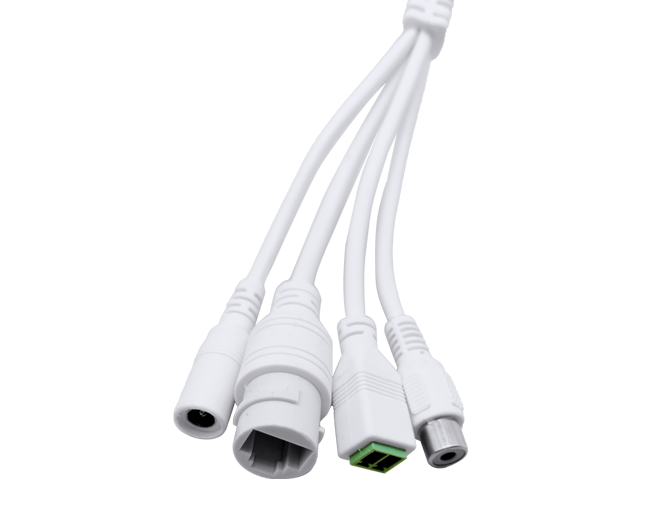

| External Interface | Ethernet interface | RJ-45 |
| Work indicator light | Blue is normal. | |
| Power interface | Ø5.5 mm round mouth | |
| Hardware part | Field of view | Horizontal field of view: 78.8°, vertical field of view: 40.5°, diagonal field of view: 93.9° |
| Minimum Illumination | color:0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| White light/Infrared dual supplementary light | Infrared light can reach a maximum distance of 30 meters, and white light can reach a maximum distance of 30 meters. | |
| Resolution | 2560*1440@25fps | |
| Data output method | 4G/Ethernet | |
| Wireless standard | LTE-TDD/LTE-FDD | |
| Wireless frequency band | LTE-TDDBand 38/39/40/41 | |
| LTE-FDDBand 1/3/5/8 | ||
| Communication distance | Carrier Network | |
| Memory | Supports local storage up to 256 GB MicroSD/MicroSDHC/MicroSDXC cards | |
| Audio input | 1 built-in microphone | |
| Audio output | 1 built-in speaker | |
| Rotation range | Horizontal range: 0°~340°; Vertical range: -5°~105° | |
| Software part | Supported network layer protocols | TCP/IP, HTTP, FTP |
| Video compression | H.265, H.264 | |
| Parameter configuration method | APP/web | |
| Supports cloud platforms | SmartClient | |
| Image section | Image settings | Saturation, brightness, contrast, sharpness |
| Day/night switching mode | Day and night | |
| Image enhancement | Backlight compensation, strong light suppression3DDigital noise reduction, digital wide dynamic range |
Applicable Scenarios
-

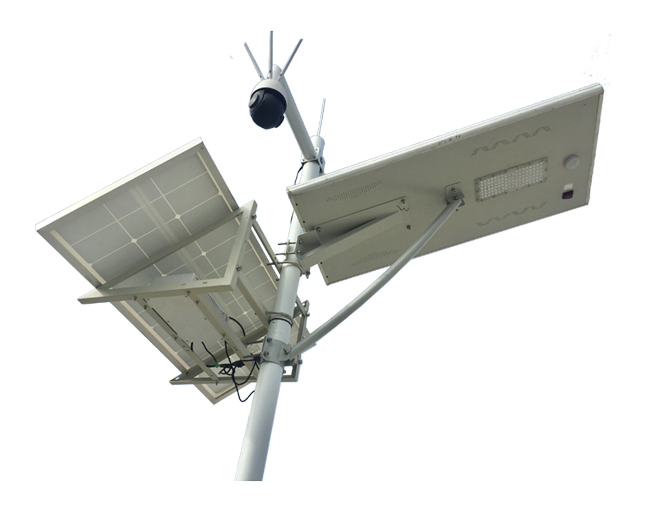

Street Light
-
UPS
-
BMS
-
Portable Energy Storage
-
Balcony Energy Storage
