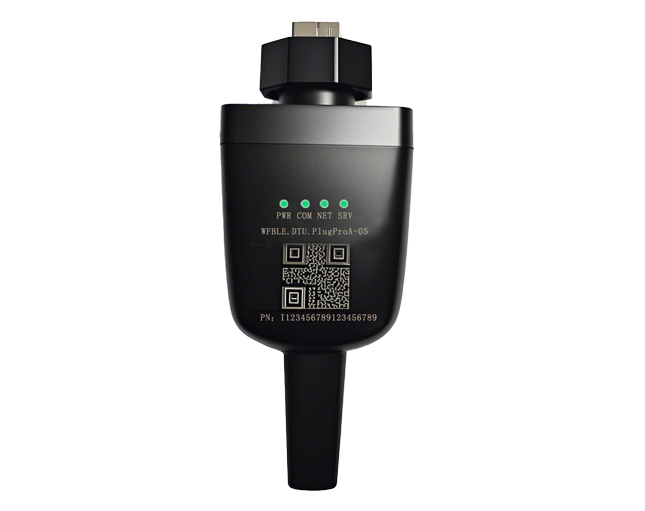

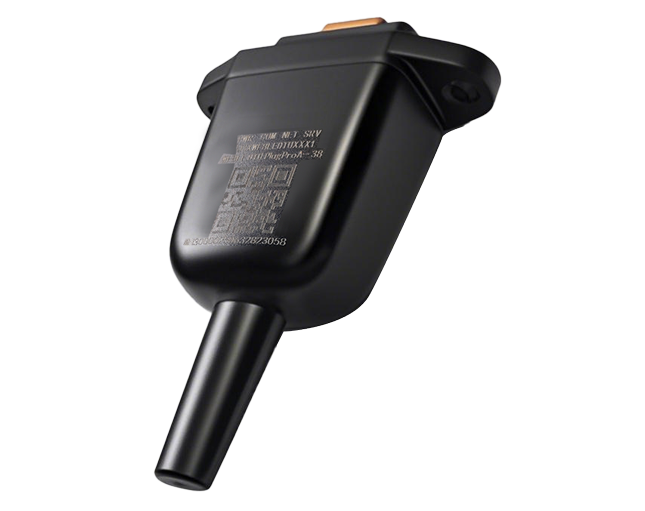

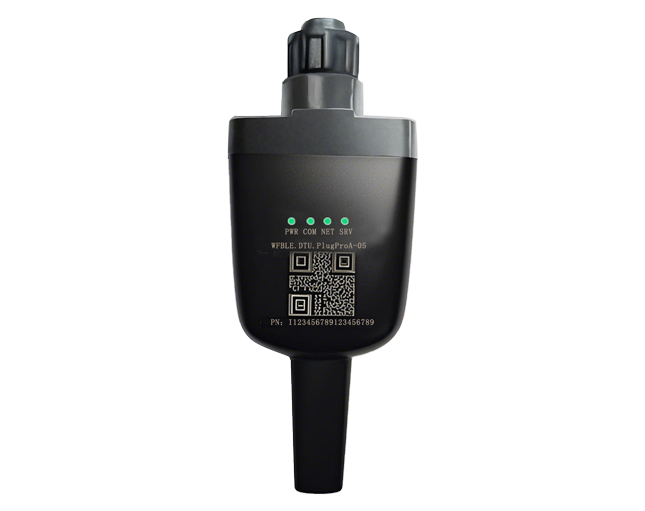

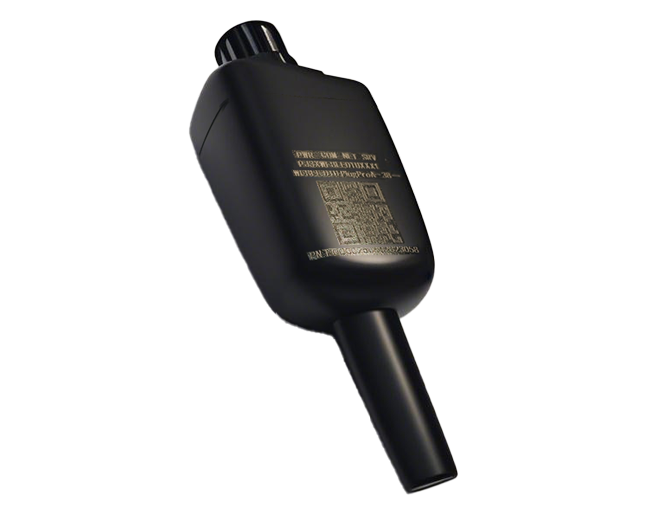

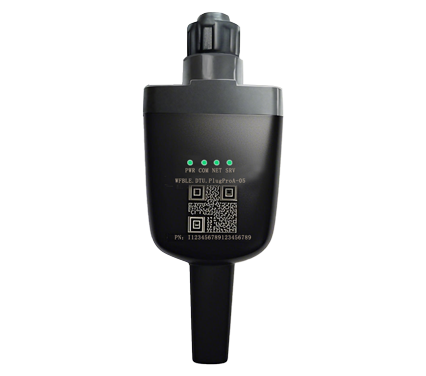

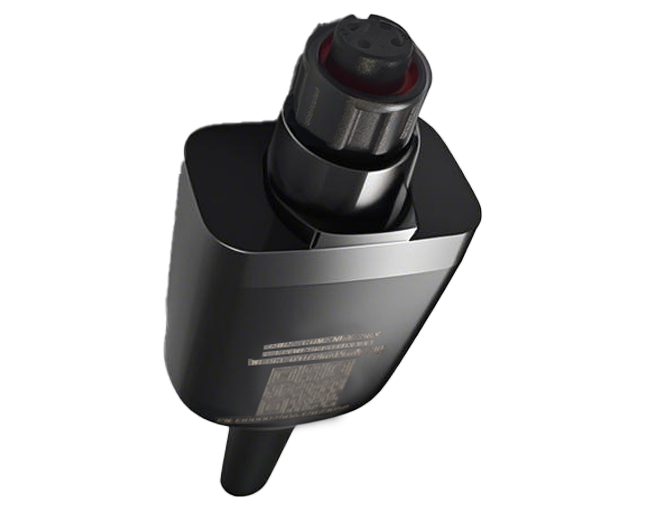

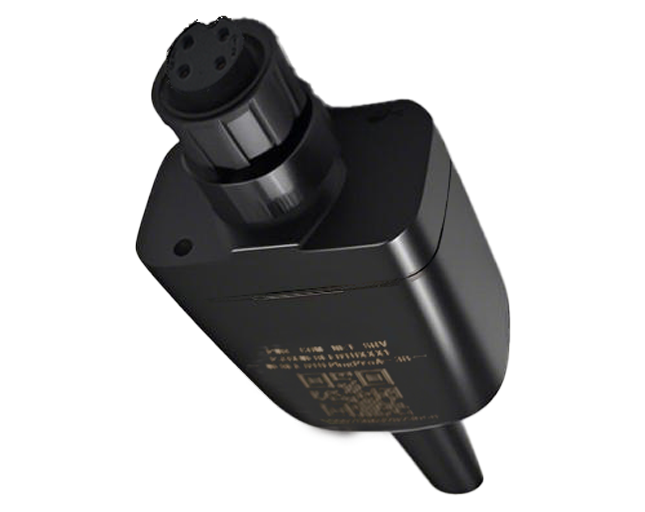

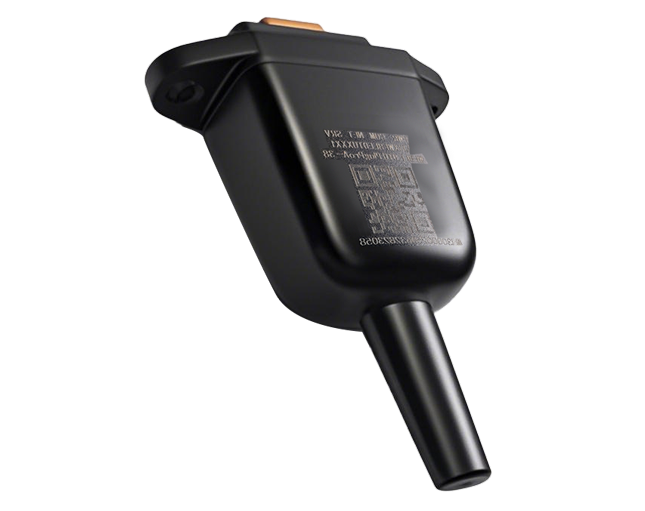

DTU. PlugPro Series

This is used to extend the Wi-Fi wireless network data transmission channel of devices. It is fixed to the device via an interface and communicates with it, connecting to a cloud server through a base station or router. It can provide users with a low-cost, visualized, and remotely operable complete monitoring solution.
DTU. PlugPro Series
  • · Plug & Play ·
  • · Various Interfaces ·

Product Features

  • Status Visibility
    Status Visibility
    4 LED Indicators
  • Various Interfaces
    Various Interfaces

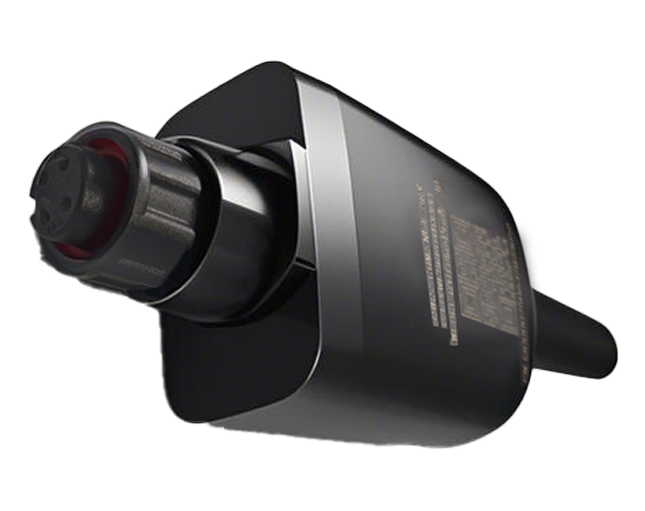

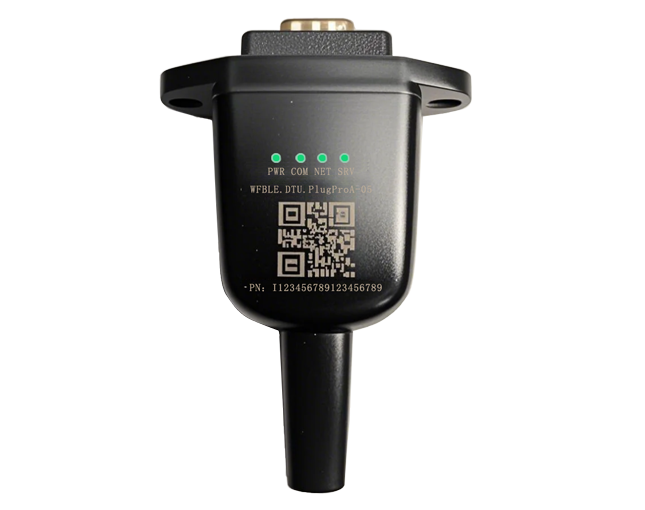

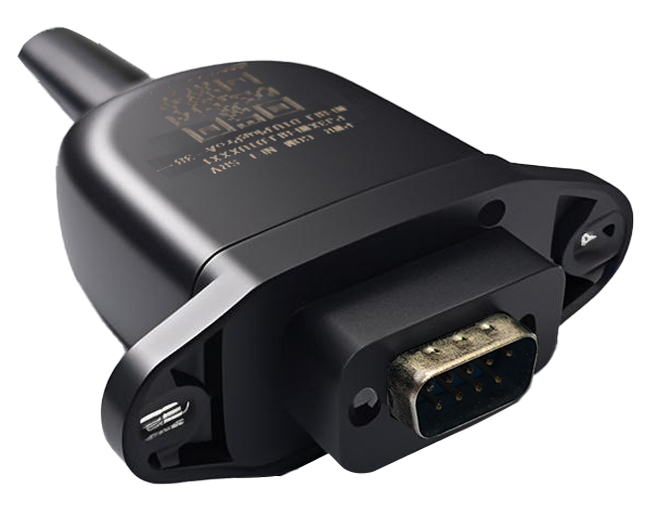

    USB/RJ-45/DB9/Aviation Connector
  • Multi-Level Support
    Multi-Level Support
    RS-485/RS-232/TTL
  • Multi-Communication
    Multi-Communication
    Wi-Fi/4G/WFBLE/NB-IoT
  • Easy Installation
    Easy Installation
    No Wiring/External Power Required
  • Reliability
    Reliability
    Wide Voltage Design + Undervoltage Protection + HW/SW Watchdog
  • Dustproof/ Waterproof
    Dustproof/ Waterproof
    IP65 Rating

Product Parameters

Product ModelsWFBLE.DTU.PlugProA4G.DTU.Plug ProA4G.DTU.Plug Pro
Basic Parameters
Dimension70*116*32mm70*116*32mm75.5*45*32mm
Protection RatingIP65IP65IP65
Rated VoltageDC5V~12V±5%DC5V~12V±5%DC5V~12V±5%
Max Current800mA(DC5V)2A(DC5V)2A(DC5V)
External InterfaceAviation Connector/USB/RJ-45/DB9
Operating Temperature-40℃ ～ +85℃-40℃ ～ +85℃-40℃ ～ +85℃
Baud Rate1200bps/2400bps/4800bps/9600bps/19200bps/38400bps/57600bps/115200bps
Serial Port LevelRS-232/RS-485/TTLRS-232/RS-485/TTLRS-232/RS-485/TTL
Fault ProtectionHardware Watchdog + Software Watchdog
Communication Range100m (Open Area)Operator NetworkOperator Network
Cloud CompatibilityEybond Cloud/Private CloudEybond Cloud/Private CloudEybond Cloud/Private Cloud
Detailed Specifications

File Downloads

Applicable Scenarios

  • Charging Piles
  • UPS
  • Household Energy Storage
  • Balcony Energy Storage
