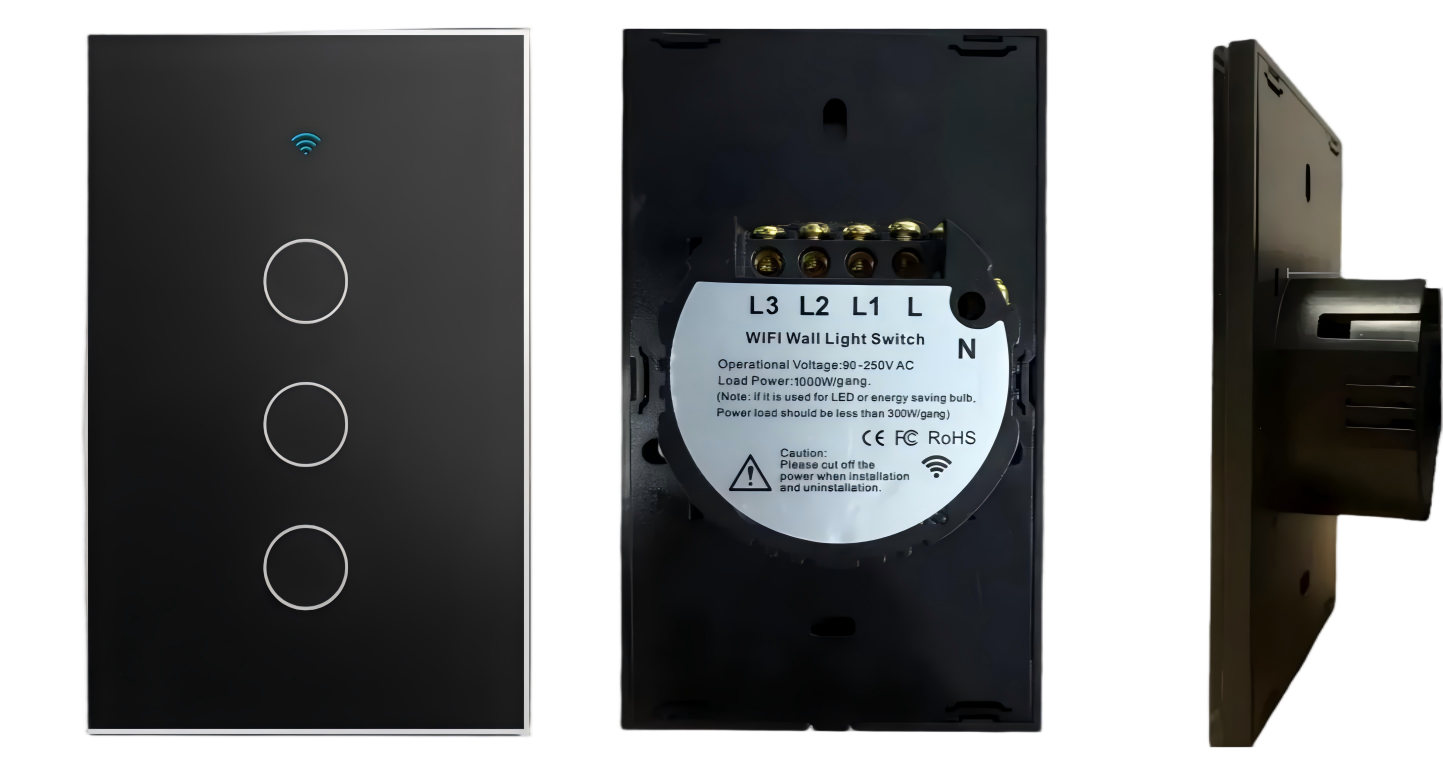

The Smart Switch is an intelligent control device powered by 2.4GHz Wi-Fi and Bluetooth Low Energy (BLE).It replaces traditional wall switches to support remote control via mobile devices and timed scheduling.Available in 1-gang, 2-gang and 3-gang models, it is ideal for controlling lighting, water heaters and other household electrical appliances.
| Category | Entry | Parameter |
| Product Structure | PCBAsize(long/Width/high) | 120mm*70mm |
| weight | 200g | |
| Material | ABS+PC | |
| Operating temperature | -20℃~+55℃ | |
| Electrical parameters | Rated voltage | AC100-250V 50/60HZ |
| Rated current | 10A(maximum) | |
| Power range | 3-2000W | |
| Load type | Incandescent lamps, energy-saving lamps, LED lamps, fans and other household appliances | |
| Wiring method | Zero Fire Edition | |
| Remote control | APPRemote control,Electricity metering | |
| Product Functions | Distribution network status LED | When the network is not configured, the network configuration indicator flashes; when the network is configured, the network configuration indicator remains on. |
| Remote control | APPRemote control | |
| Relay switches and LEDs | When the button is pressed to turn on, the relay turns on, and the LED light illuminates and remains on. | |
| Button off, relay off, LED light off | ||
| Wireless parameters | wireless standards | IEEE 802.11 b/g/n, 2.4GHz |
| BLEVersion | Bluetooth 5.0 | |
| frequency band | Wi-Fi@2.4GHz | |
| Transmit power | 802.11b: +17 +/-2dBm (@11Mbps),CCK) | |
| 802.11g: +16 +/-2dBm (@54Mbps),OFDM) | ||
| 802.11n: +15 +/-2dBm(@HT20, MCS7) | ||
| Receiver sensitivity | 802.11b: -85 dBm (@11Mbps),CCK) | |
| 802.11g: -70 dBm (@54Mbps),OFDM) | ||
| 802.11n: -68 dBm (@HT20),MCS7 | ||
| Transmission distance | 50~100m | |
| Other parameters | Warranty | 1Year |
| Certification | FCC |
