DTU. Bar Series

This USB flash drive-sized device is the preferred choice for home storage. It is plug-and-play and can extend the Wi-Fi channel for remote monitoring. It features diverse interfaces, protocol adaptation, four-way status indicator lights, and dual hardware and software protection, ensuring stable operation.

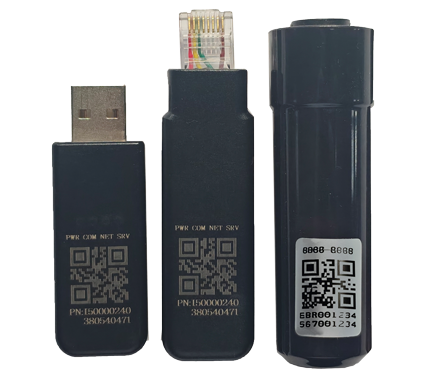

DTU. Bar Series
  • · Plug & Play ·
  • · Compact & Lightweight ·
  • · Ideal for Household Storage ·

Product Features

  • Compact & Lightweight
    Compact & Lightweight
    U Disk Design
  • Multi-Interfaces
    Multi-Interfaces
    USB/RJ-45/Aviation Connector
  • Status Visibility
    Status Visibility
    4 LED Indicators
  • Dual Protections
    Dual Protections
    Hardware + Software Watchdog
  • Protocol Adaptation
    Protocol Adaptation
    Support Multiple Communication Protocols

Product Parameters

Product ModelsWFBLE.DTU.Bar-06WFBLE.DTU.Bar-07WFBLE.DTU.Bar-08
Basic Parameters
Dimension20*76*12mm20*46*9mm23*23*74mm
Rated VoltageDC5V~DC12VDC5V~DC12VDC5V~DC12V
Max Current500mA(DC5V)500mA(DC5V)500mA(DC5V)

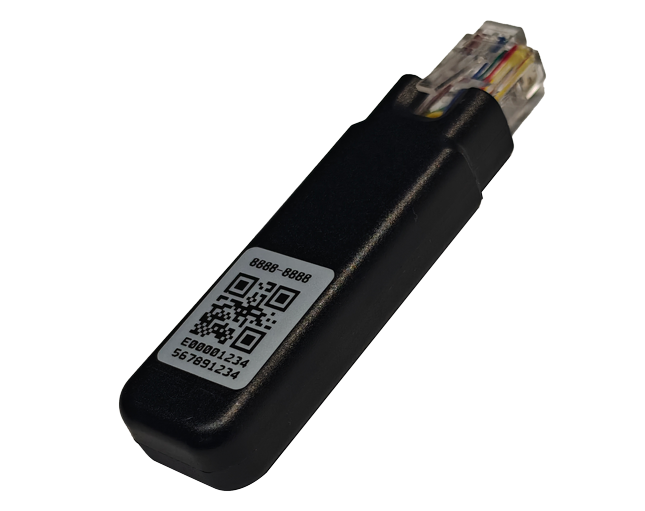

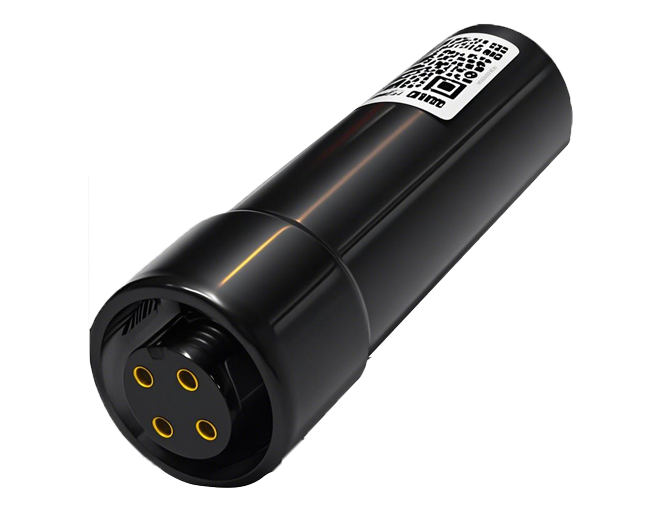

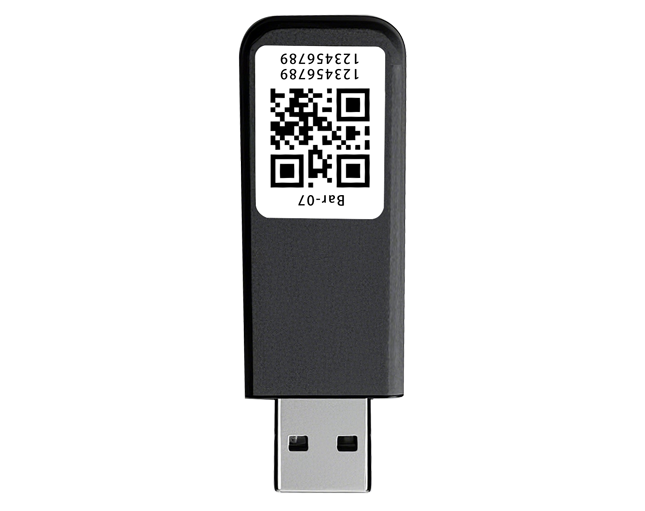

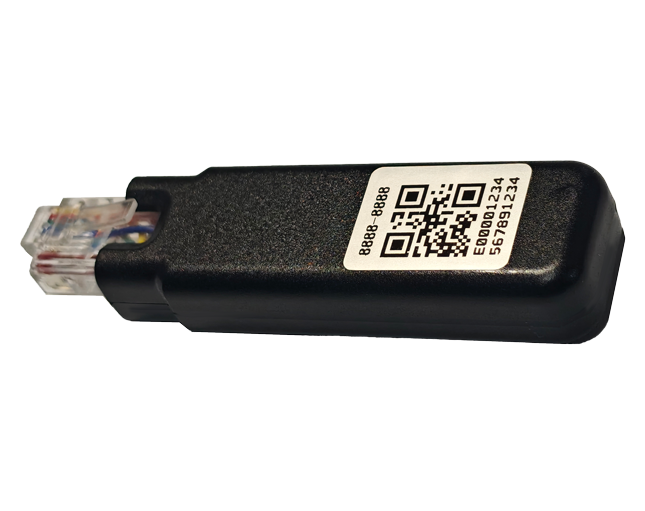

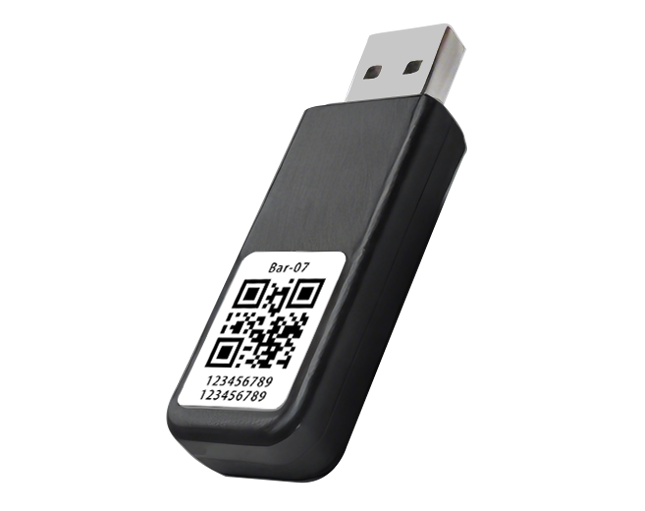

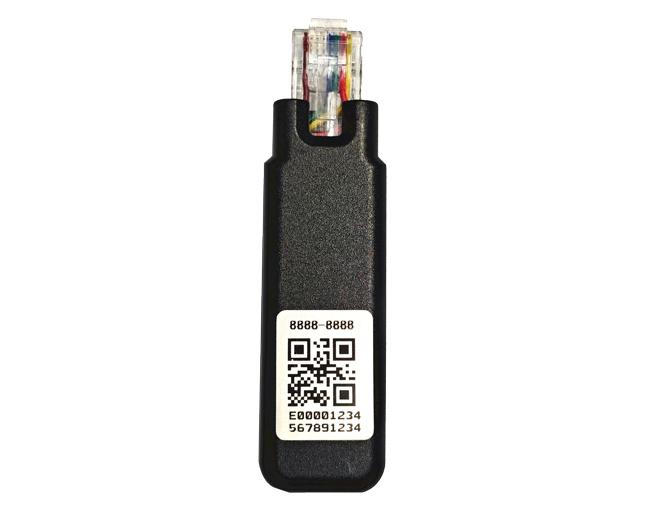

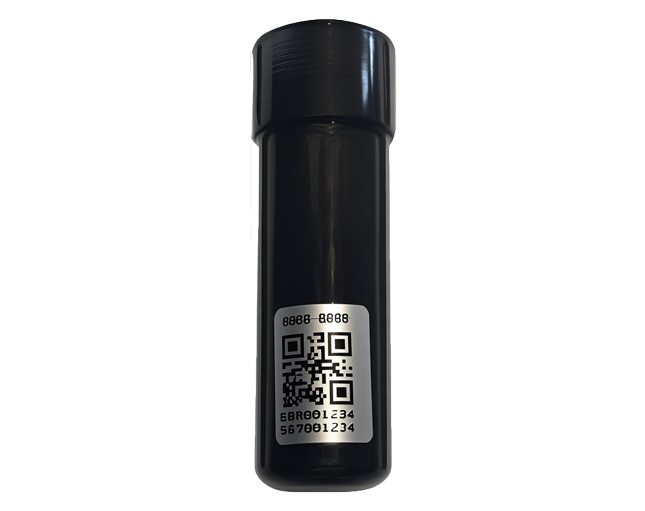

External InterfaceRJ45USB Type AAviation Connector (M12)
Operating Temperature-40℃～+85℃-40℃～+85℃-40℃～+85℃
Serial Port LevelRS-232/RS-485RS-232/RS-485RS-232/RS-485
Baud Rate1200bps/2400bps/4800bps/9600bps/19200bps/38400bps/57600bps/115200bps
Fault ProtectionHardware Watchdog + Software Watchdog
Communication Range30m (open environment)30m (open environment)30m (open environment)
Cloud CompatibilityEybond Cloud/ Private CloudEybond Cloud/ Private CloudEybond Cloud/ Private Cloud
Detailed Specifications

File Downloads

Applicable Scenarios

  • Charging Piles
  • UPS
  • Household Energy Storage
  • Balcony Energy Storage
